Rod Seals
Rod seals for hydraulic cylinders. Multiple profiles for pressures up to 600 bar.
Products (8)

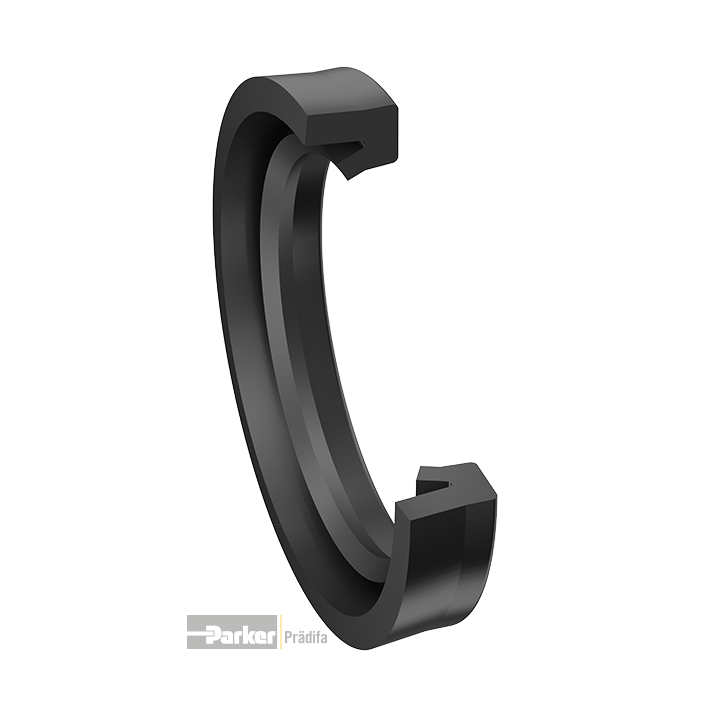

C1C1 Profile Rod Seal
Compact rod seal for low to medium pressure hydraulic applications.
| Parameter | Value |
|---|---|
| Max Pressure | 160 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -35/+110°C |

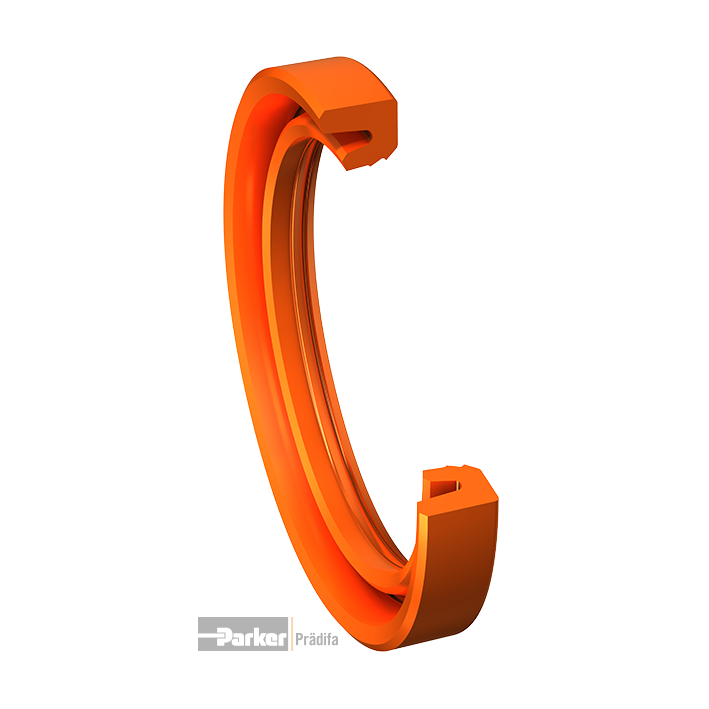

HLUltrathan HL Rod Seal
Ultrathan rod seal for medium-pressure hydraulic cylinder applications.
| Parameter | Value |
|---|---|
| Max Pressure | 250 bar |
| Max Speed | 1.0 m/s |
| Temp Range | -35/+110°C |

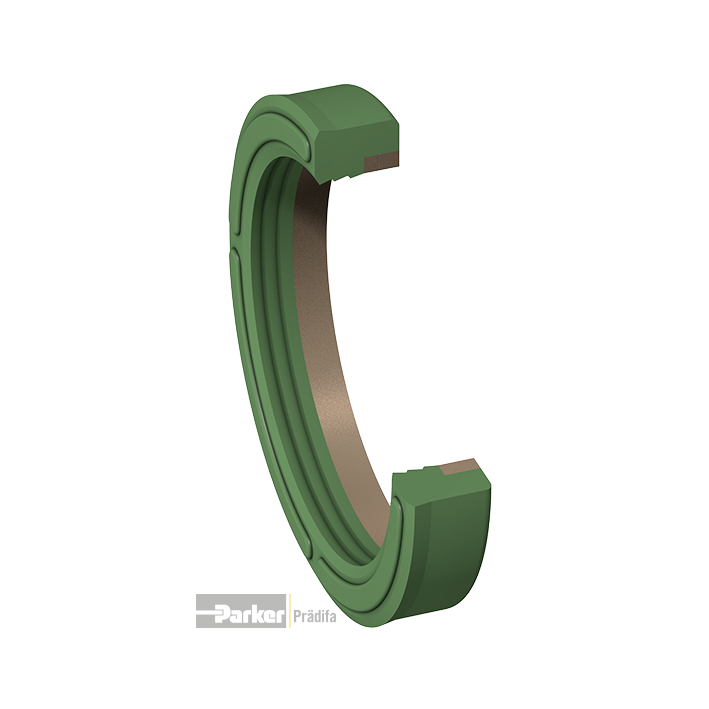

R3R3 Profile Rod Seal
R3 profile rod seal for demanding hydraulic sealing requirements.
| Parameter | Value |
|---|---|
| Max Pressure | 315 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -30/+100°C |

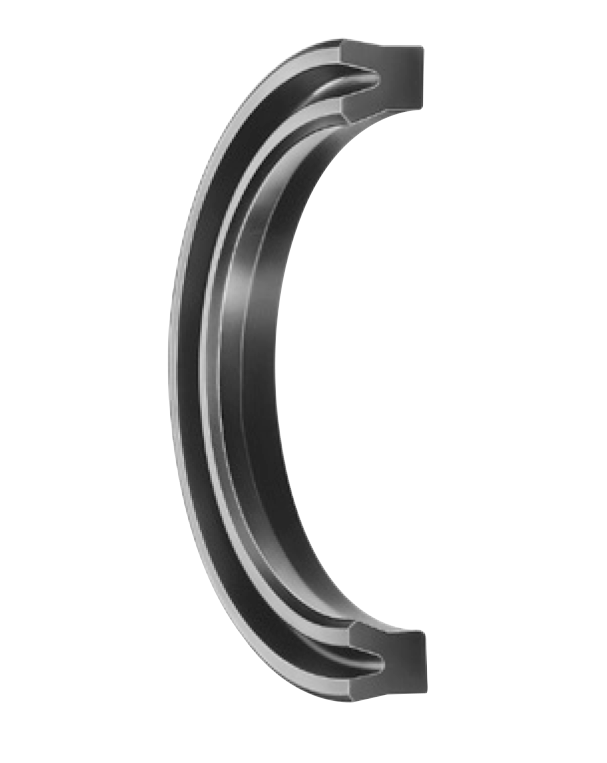

B3Ultrathan B3 Rod Seal
High-pressure Ultrathan rod seal for heavy-duty hydraulic cylinders.
| Parameter | Value |
|---|---|
| Max Pressure | 400 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -35/+110°C |

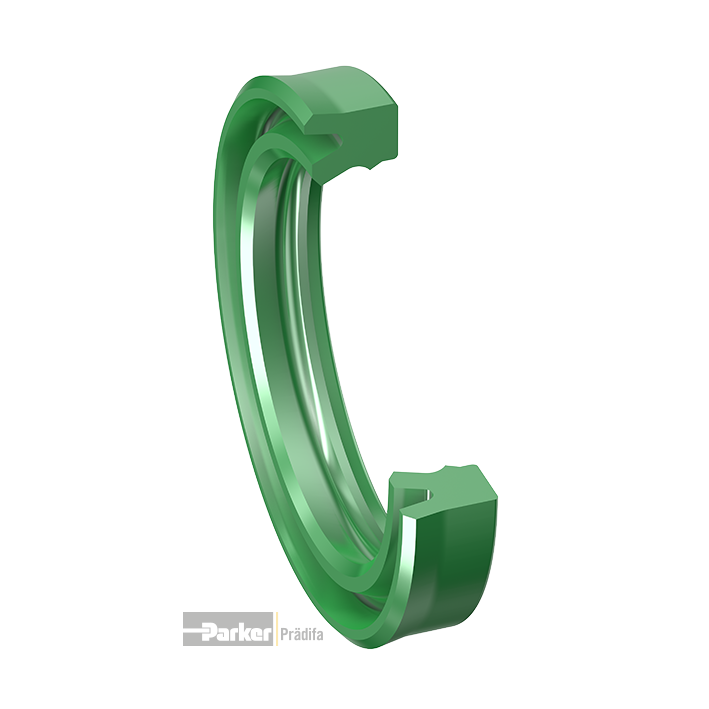

BSUltrathan BS Rod Seal
Ultrathan BS rod seal for high-pressure hydraulic applications.
| Parameter | Value |
|---|---|
| Max Pressure | 400 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -35/+110°C |

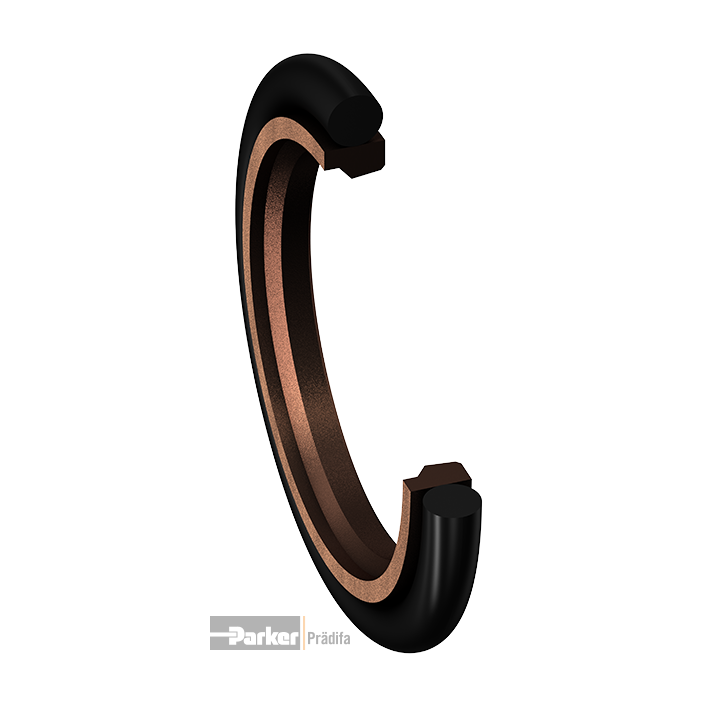

ODOD Profile Rod Seal
PTFE rod seal for the highest pressures and speeds in hydraulic systems.
| Parameter | Value |
|---|---|
| Max Pressure | 600 bar |
| Max Speed | 4.0 m/s |
| Temp Range | -30/+100°C |

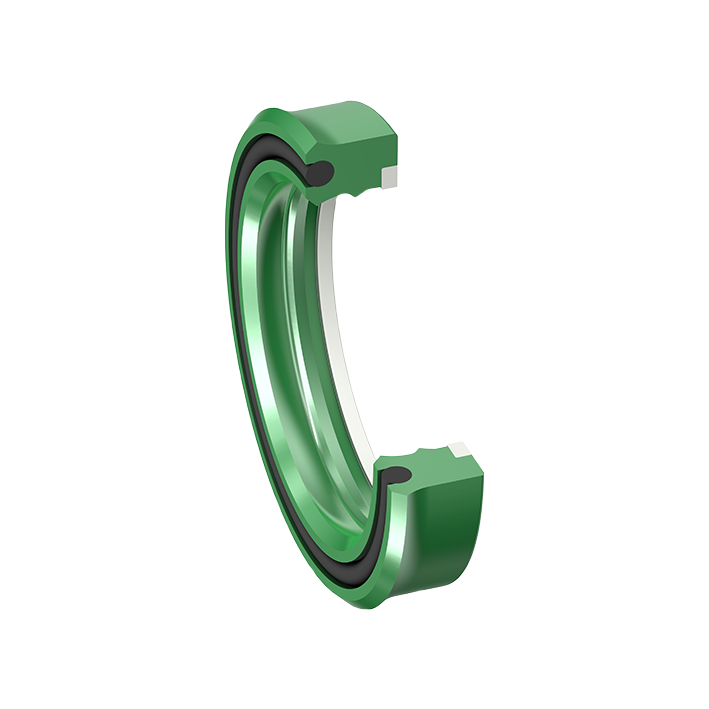

BDUltrathan BD Rod Seal
Heavy-duty Ultrathan rod seal for high-pressure hydraulic applications.
| Parameter | Value |
|---|---|
| Max Pressure | 500 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -35/+110°C |

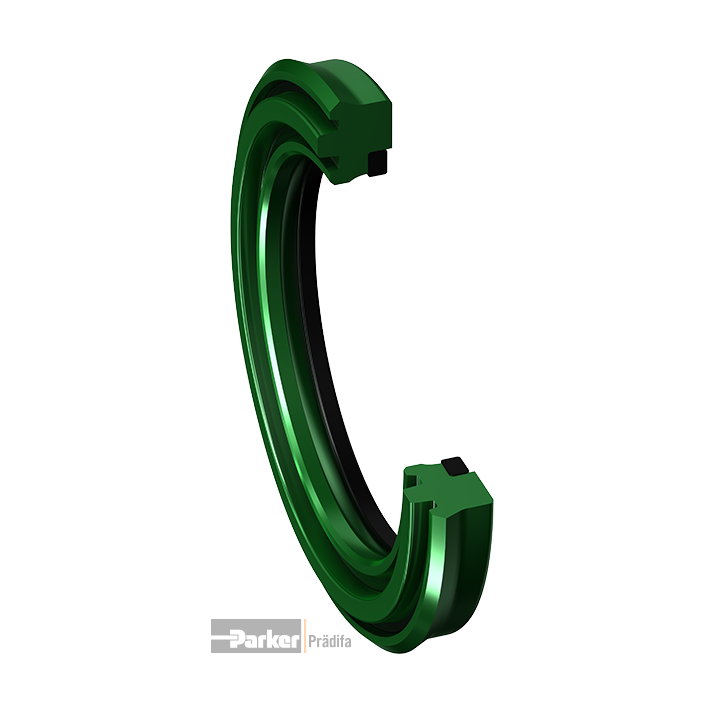

BUBU Profile Rod Seal
BU profile rod seal for demanding high-pressure sealing.
| Parameter | Value |
|---|---|
| Max Pressure | 500 bar |
| Max Speed | 0.5 m/s |
| Temp Range | -35/+100°C |
